High Voltage Ammeter 2000A

$1,687.85

Can be used with Greenlee battery-hydraulic knockout drivers, manual-hydraulic knockout drivers, or ratchet wrench. Use with Greenlee dies and draw studs. Unique punch profile splits slugs allowing for easy slug removal Knurled edge for better grip Laser markings for quick part identification Made in USA Replaces 721-1P
To view more info on the Greenlee site Click Here

Description

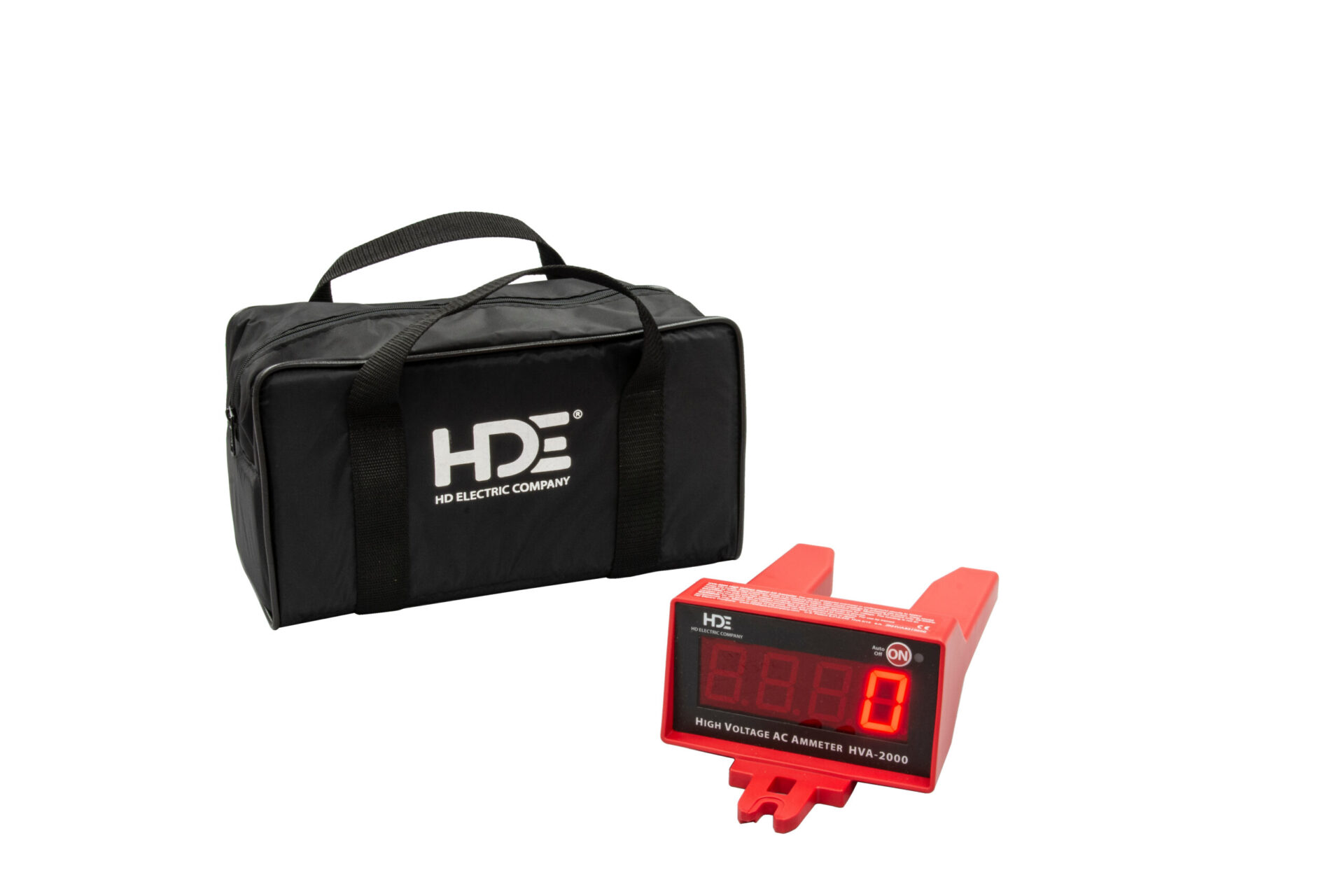

Sub Brand : HDE Type : Ammeter Model : HVA-2000 Voltage Rating : 0 – 500kV line-to-ground Amperage Rating : 1 -2000A Accuracy : 50-60Hz – 1–10A – 1% +/-2 counts, 11–100A – 1% +/-3 counts, 101–500A – 1% +/-6 counts, 501–2000A – 1% +/-8. 252-49Hz and 61-500Hz – 1–10A – 2% +/-3 counts, 11–100A – 2% +/-4 counts, 101–500A – 2% +/-6 counts, 501–2000A – 2% +/-8 counts Display : LED display Operating Temperature : -20°F to +140°F (-29°C to +60°C) Dimensions : 4”H x 6.6”W x 11.5”L Frequency Rating : 25 – 500Hz Included : HVA-2000 Ammeter, B-5 Bag
To view a Brochure Click Here

Additional information

Weight 3.52 lbs
Dimensions 9.3 × 7.7 × 1 in
Catalog #

HVA-2000

Material #

52068910

UPC/Ean #

783310628309

Sold in Quantities of

1
