Description

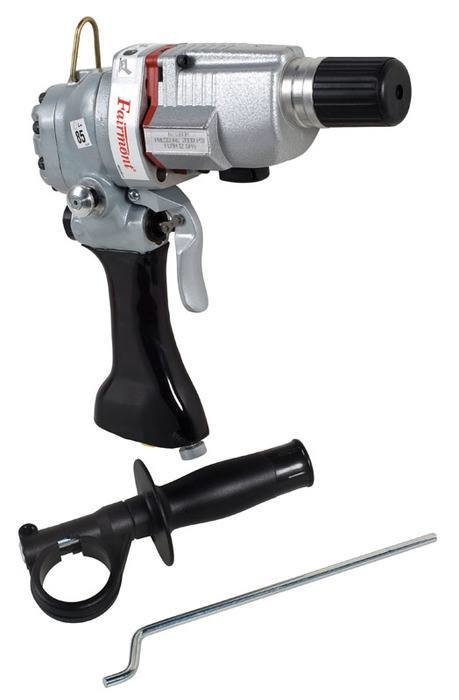

Accessory : 54923 HTMA Male Coupler, 54925 HTMA Female Coupler, 139287 Auxiliary Drill Chuck Blows Per Minute : 3400 – 4800 RPM At 6.500 GPM (25.000 LPM) Capacity : Steel 1/2 IN (134.000 MM) Hole, Wood 1-1/16 IN (27.000 MM) Hole, Concrete 3/4 IN (19.000 MM) Hole, Core Bits 3.000 IN (76.000 MM) Chuck : SDS Plus Bit Shanks Height : 9.750 IN (248.000 MM) Hydraulic Flow Range : 5 – 10 GPM (19 – 38 LPM) Length : 12.000 IN (305.000 MM) Operating Pressure : 1000 – 2000 PSI (69 – 140 BAR) Pressure Port : 3/4 – 16 SAE O-Ring Thread Return Port : 3/4 – 16 SAE O-Ring Thread Speed : 775 – 1100 RPM At 6.5 GPM (25LPM) System : Super Spool Selector Control System Type : Rotary Impact Weight : 8.500 LB (3.900 KG) Width : 3.500 IN (89.000 MM)
