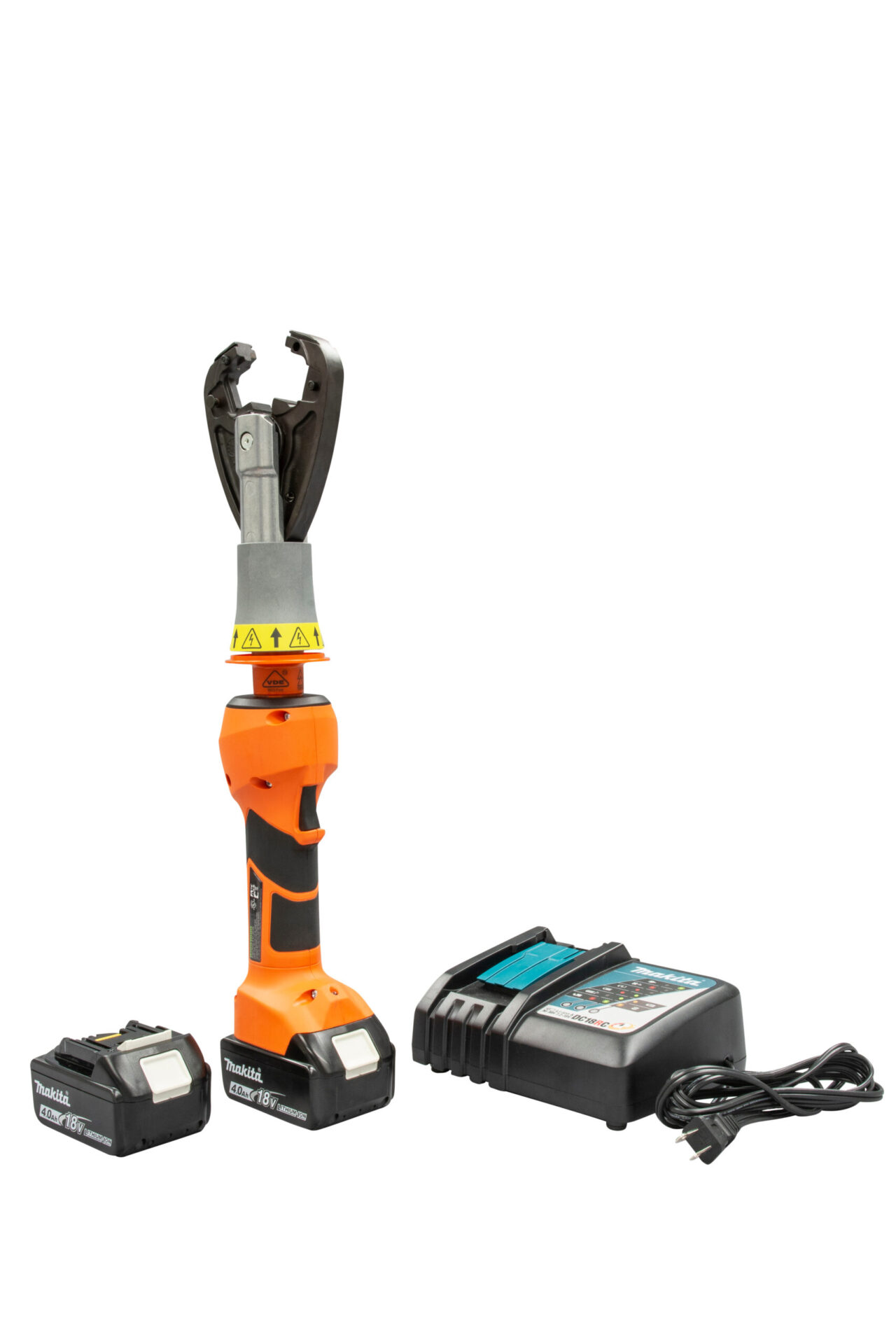

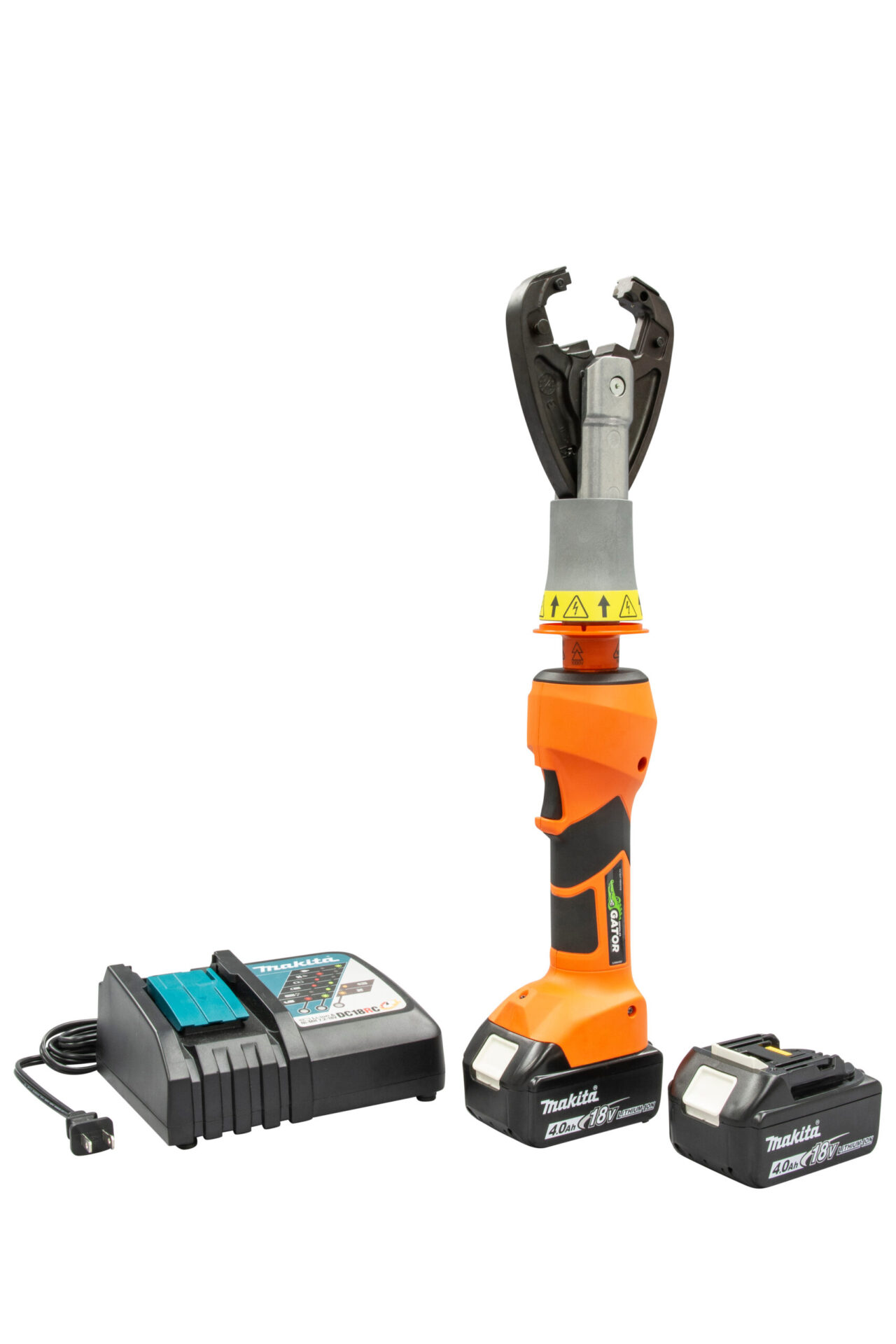

CRIMPER, 6T V, CJK, 120V

$3,080.10

Gator U die and W die crimping
To view more info on the Greenlee site Click Here

Description

Sub Brand : Gator Type : Die style crimper Application : 6 Ton Crimping Standard : C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested Overall Length : 19 IN (482mm) Crimping Force : 12,000 lbs. (53 kN) Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 – 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Connector Type : Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices Handle Type : In-Line Style with over molded rubber grip
To view an Operator’s Manual Click Here
To view a Catalog Sheet Click Here
To view a Brochure Click Here

Additional information

Weight 14.16 lbs
Dimensions 22.6 × 12.2 × 8.6 in
Catalog #

EK425VXK11

Material #

52086667

UPC/Ean #

7.8331E+11

Sold in Quantities of

1
