CRIMPER, 6T V, CJD3BG, 12V

$3,080.10

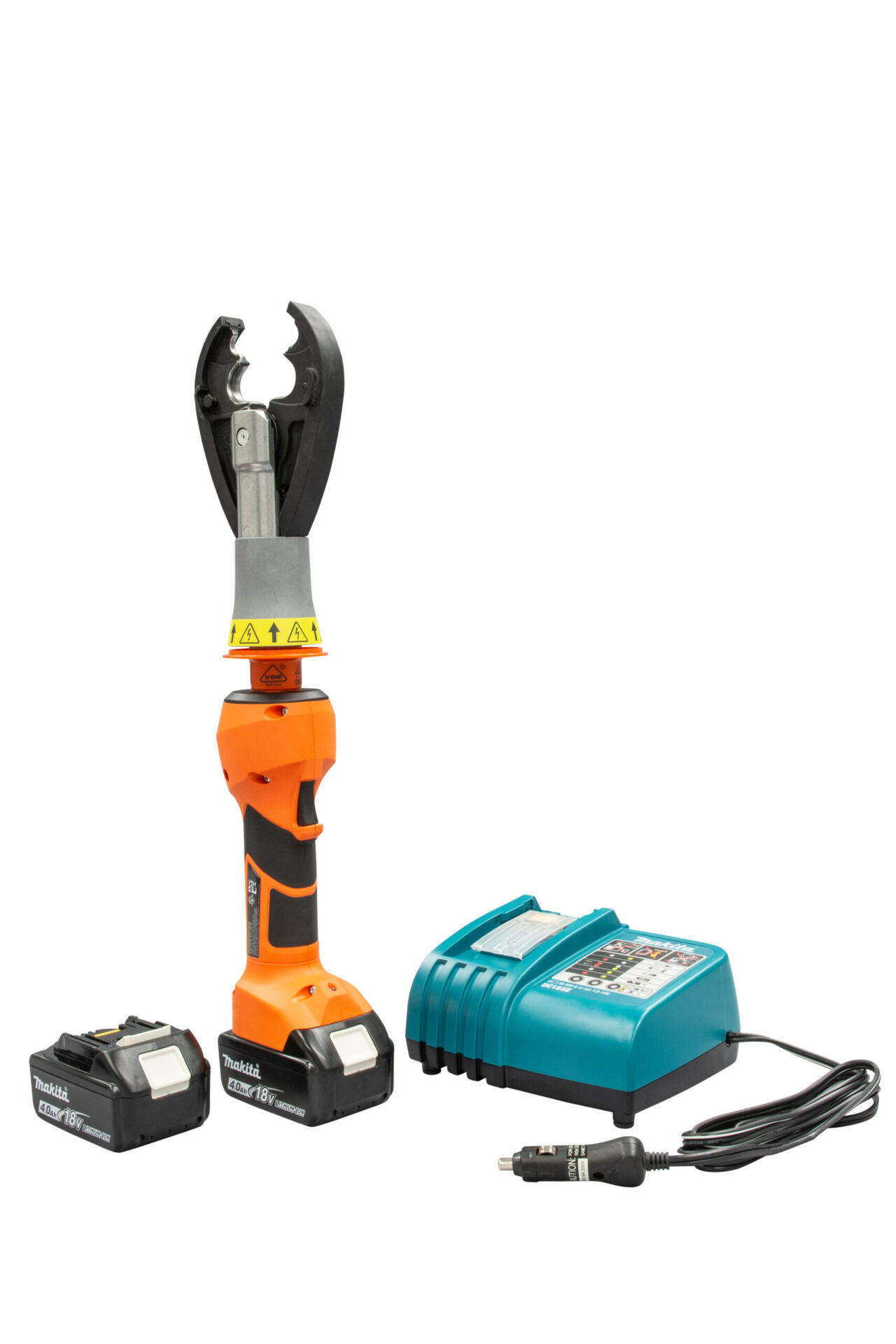

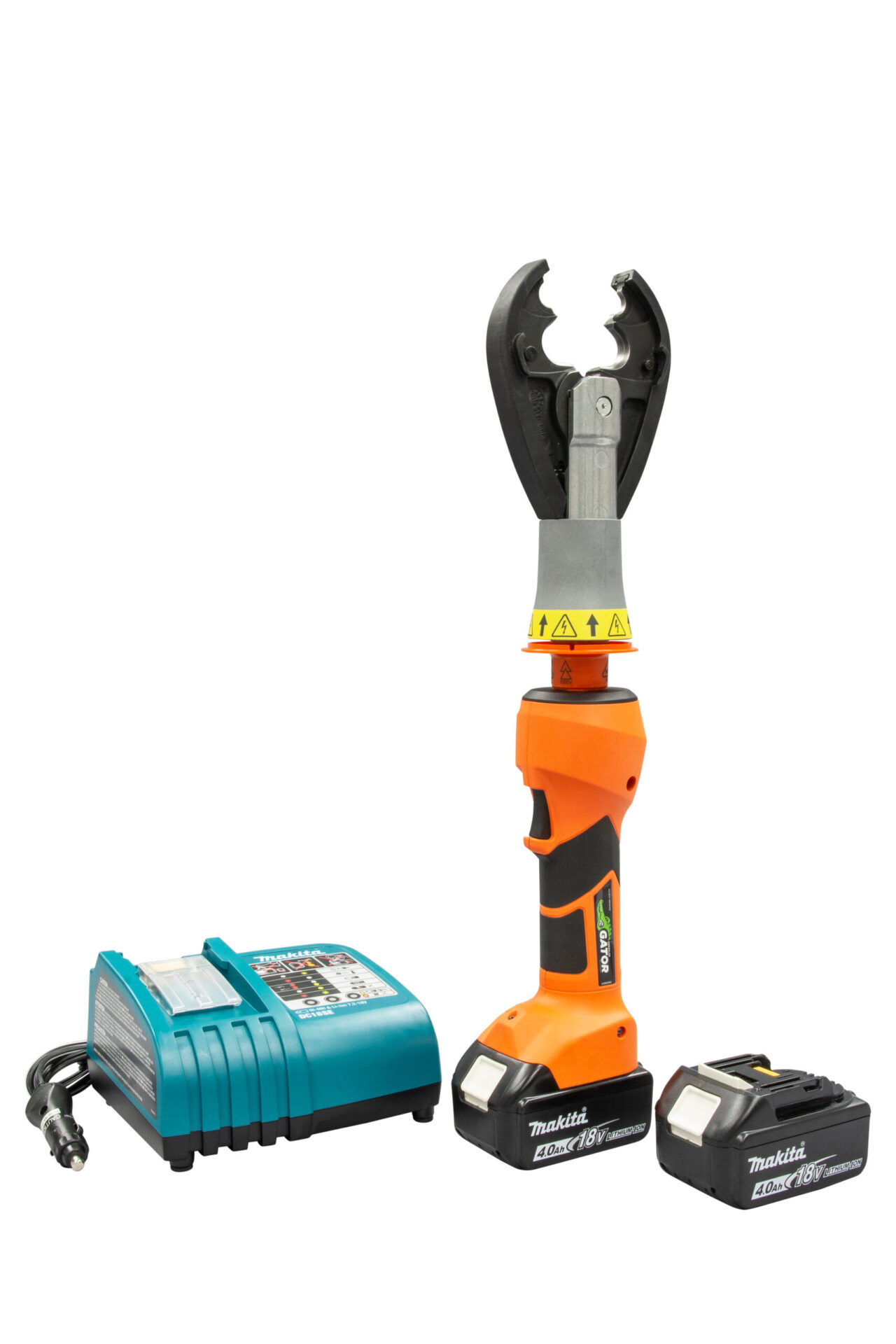

Gator 6 Ton Crimping Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times LED light provides the operator with the battery charge and tool maintenance status In-Line tool style is light weight and very easy to control One trigger controls all tool functions Crimping head rotates 350°
To view more info on the Greenlee site Click Here

SKU: GRN-EK425VXDBG12 Categories: , , , Tag:

Description

Sub Brand : Gator Type : Die style crimper Application : 6 Ton Crimping Standard : C/US UL Listed, IEC 62481-1; VDE, CSA, MET Tested Overall Length : 19 IN (482mm) Crimping Force : 12,000 lbs. (53 kN) Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 – 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR Connector Type : Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices Handle Type : In-Line Style with over molded rubber grip
To view an Operator’s Manual Click Here
To view a Catalog Sheet Click Here
To view a Brochure Click Here

Additional information

Weight 14.35 lbs
Dimensions 24 × 12.05 × 9 in
Catalog #

EK425VXDBG12
Material #

52086664
UPC/Ean #

7.8331E+11
Sold in Quantities of

1
